SE237 Stand Alone industrial gas detector, with replaceable sensor cartridge
The SE237 is a gas detector used in centralized alarm systems for parking areas, industries, and environments that need protection against possible gas leaks, etc. The detector consists of a housing that contains the electronic c… See more...
The SE237 is a gas detector used in centralized alarm systems for parking areas, industries, and environments that need protection against possible gas leaks, etc. The detector consists of a housing that contains the electronic circuit and the connection terminals.

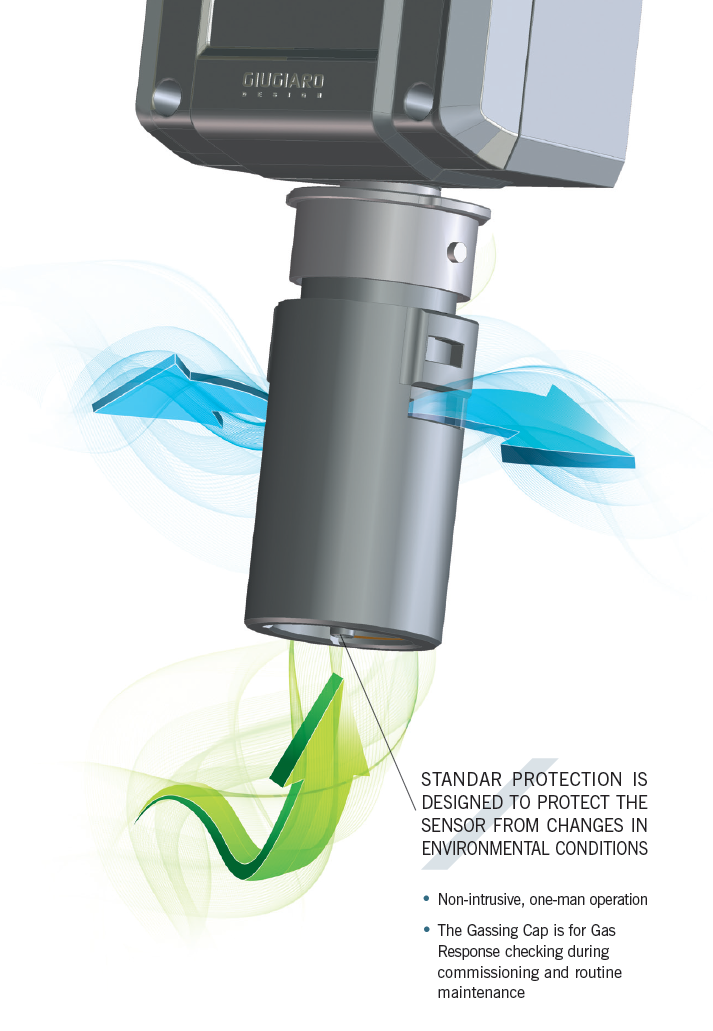

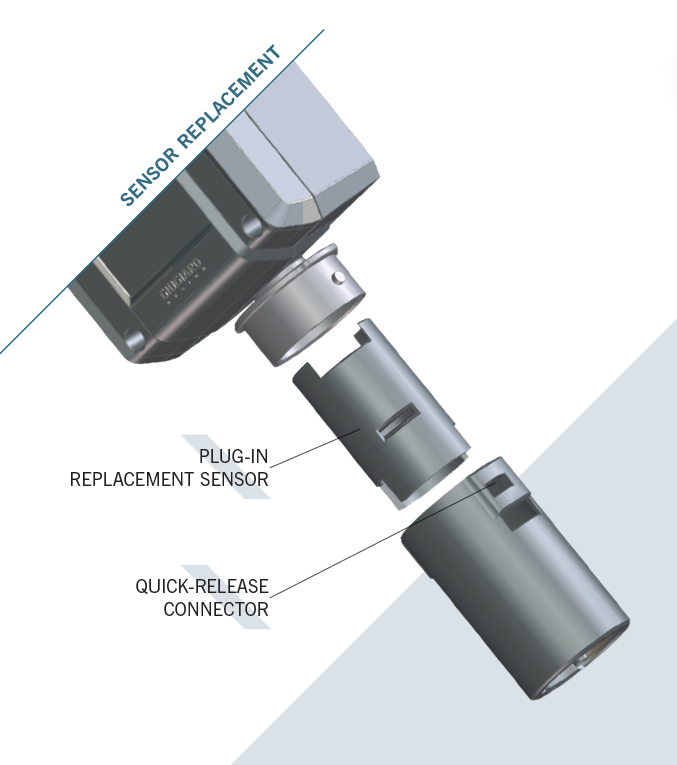

In the sensor holder, there is a "Replaceable Sensor Cartridge" that contains the sensitive element along with identification and calibration data.
The SE237 has three alarm relays that can be set for different gas detection thresholds.

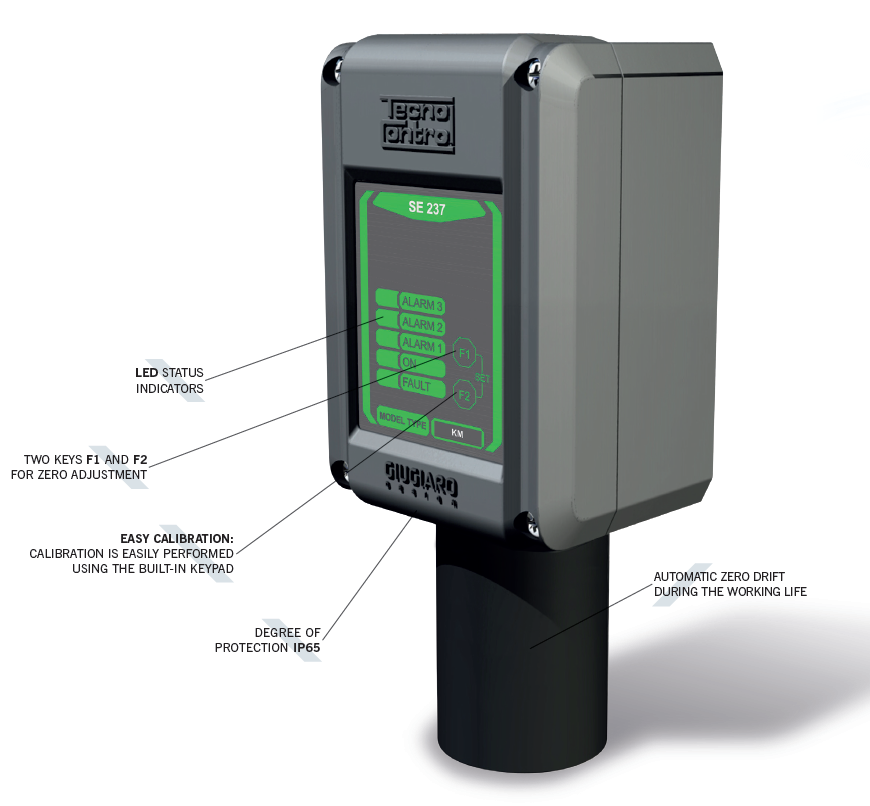

The relays are sealed and have a voltage-free contact. On the cover, five LEDs indicate the operating conditions.
            Standard Specifications
















































































































































































































































            Power supply: 12-24V DC (-10/+15%)





                        Power consumption: 3W





                        Outputs: 4 relays + 1 linear 4-20mA





                        1st relay threshold: 10% LEL (Methane and LPG) 50ppm (CO)





                        2nd relay threshold: 20% LEL (Methane and LPG) 100ppm (CO)





                        Relay capacity: 230V AC - 3A, changeover contacts, normally energized





                        Protection rating: IP65





                        Installation: wall-mounted

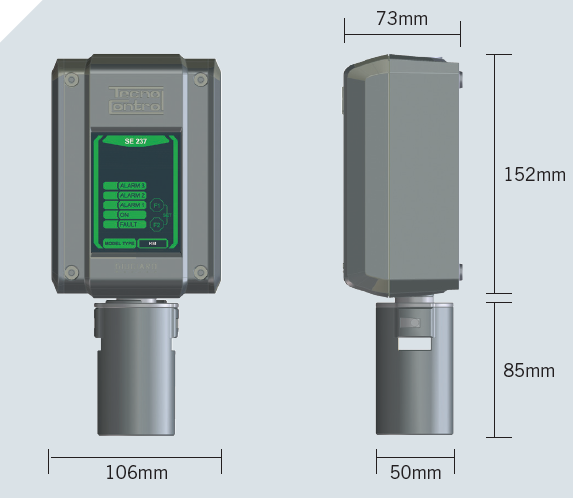

                        Dimensions: 195x105x85mm






            Downloads


















    -

        Brochure - New Product Design 2017
-

        Instruction SE237E for toxic gases
-

        Instruction SE237EO for oxygen
-

        SE237K for flammable gases - catalytic
-

        Instructions SE237P for flammable gases - pellistor
-

        Instructions SE237P for Refrigerants gas
-

        Brochure - Gas Detection
-

        Electric Material and Gas Detection Catalogue
-

        Catalogue Gas Train Equipment
-

        TS282 SE237 TS482 Video instructions
To view the video, you need to accept our Cookie Policy. If the player doesn't appear, click the link below.




Available Calibration Tables
Table 1
Gas infiammabili – Sensori “PX”
Flammable gases - "PX” sensors



                Flammable gases - "PX” sensors
| Sensore tarabile per / Sensor calibrated for | K | LFL (% v/v) | Densità (Aria/Air = 1) |
|---|---|---|---|
| Acetato di etile / Ethyl acetate | 1.67 | 2.20 | 3.04 |
| Acetone / Acetone | 1.67 | 2.50 | 2.00 |
| Alcool isopropolico (2-Propanolo) / Iso-Propil Alcool (IPA) | 1.67 | 2.00 | 2.10 |
| Ammoniaca / Ammonia | 0.77 | 15.00 | 0.59 |
| Benzina / Petrol | 1.54 | 1.20 | 2.80 |
| Butano / Butane | 1.43 | 1.40 | 2.05 |
| Eptano / Heptane | 1.82 | 1.10 | 3.46 |
| Esano / Hexane | 1.54 | 1.00 | 2.97 |
| Etanolo (Alcool etilico) / Ethanol (Ethyl alcohol) | 1.43 | 3.10 | 1.59 |
| Etilene / Ethylene | 1.18 | 2.30 | 0.97 |
| Idrogeno / Hydrogen | 1.54 | 4.00 | 0.07 |
| Metano / Natural gas | 1.00 | 4.40 | 0.55 |
| Metanolo (Alcool metilico) / Methanol (Methyl alcohol) | 1.00 | 5.50 | 1.11 |
| Metiletilchetone (Butanone) / Butanone (MEK) | 2.22 | 1.80 | 2.48 |
| Ottano / n-Octane | 2.00 | 0.80 | 3.93 |
| Pentano / n-Pentane | 1.43 | 1.40 | 2.48 |
| Propano / Propane | 1.33 | 1.70 | 1.56 |
| Toluene (Toluolo) / Toluene | 1.67 | 1.10 | 3.20 |
Table 2
Gas infiammabili – Sensori “PX-H”
Flammable gases - "PX-H” sensors



                Flammable gases - "PX-H” sensors
| Sensore tarabile per | Sensor calibrated for K | LFL (% v/v) | Densità (Aria/Air = 1) |
|---|---|---|---|
| 14-Diossano / 1,4-Dioxane | 2.21 | 2.10 | 3.00 |
| Acetaldeide (Aldeide acetica) / Acetaldehyde | 1.57 | 4.00 | 1.52 |
| Acetato di butile / Buthyl acetate | 2.48 | 1.30 | 4.01 |
| Acetato di etile / Ethyl acetate | 2.15 | 2.20 | 3.04 |
| Acetilene / Acetylene | 1.59 | 2.30 | 0.90 |
| Acetone / Acetone | 1.67 | 2.50 | 2.00 |
| Acetonitrile / Acetonitrile | 1.96 | 3.00 | 1.42 |
| Acido acetico / Acetic acid | 3.00 | 4.00 | 2.07 |
| Acido butirrico-n / n-Butyric acid | 2.14 | 2.00 | 3.04 |
| Acido cianidrico / Hydrogen cyanide | 1.94 | 5.40 | 0.90 |
| Acqua Ragia / White spirit | 2.00 | 0.80 | 4.60 |
| Alcool butilico terz / tert-Butyl alcohol | 1.56 | 2.40 | 2.60 |
| Alcool butilico-n / n-butyl alcohol (1-Butanol) | 2.20 | 1.70 | 2.60 |
| Alcool isobutilico / Iso-Buthyl alcohol-2-Methyl-1-Propanol | 1.90 | 2.00 | 2.55 |
| Alcool isopropolico (2-Propanolo) / Iso-Propil Alcool (IPA) | 0.77 | 2.00 | 2.10 |
| Alcool propilico (1-Propanolo) / Iso-Propyl alcohol (Propan 1-ol) | 1.69 | 2.20 | 2.10 |
| Ammoniaca / Ammonia | 1.82 | 15.00 | 0.59 |
| Anidride acetica / Acetic anhydride | 2.52 | 2.00 | 3.50 |
| Anilina / Aniline | 2.61 | 1.20 | 3.20 |
| Benzina (verde) / Petrol (unlead) | 2.20 | 2.80 | 1.20 |
| Benzolo / Benzene | 2.21 | 1.20 | 2.70 |
| Butadiene-13 / 13-Butadiene | 2.24 | 1.40 | 1.87 |
| Butano / Butane | 1.92 | 1.40 | 2.05 |
| Butene-1 / But-1-ene | 1.89 | 1.60 | 1.95 |
| Butene-2-trans / trans-Butene-2 (trans-But2ene) | 1.66 | 1.80 | 1.93 |
| Butene-2cis (Butene-2) / cis-Butene-2 (cis-But2ene) | 1.95 | 1.60 | 1.93 |
| Cianogeno / Cyanogen (Ethanedinitrile) | 0.93 | 6.00 | 1.80 |
| Cicloesano / Cyclohexane | 2.16 | 1.20 | 2.90 |
| Ciclopentano / Cyclopentane | 1.70 | 1.40 | 2.40 |
| Ciclopropano / Cyclopropane | 1.34 | 2.40 | 1.45 |
| Clorobenzene / Chlorobenzene | 2.62 | 1.40 | 3.88 |
| Cloruro di etile / Cloroethane (ethyl cloride) | 1.54 | 3.60 | 2.20 |
| Cloruro di metile / Chloromethane (Methyl chloride) | 1.14 | 7.60 | 1.78 |
| Cloruro di metilene / Methylene chloride (Dichloromethane) | 0.90 | 15.50 | 2.90 |
| Cloruro di vinile (Cloroetilene) / Vinyl chloride (1-Chloroethylene) | 1.78 | 3.60 | 2.15 |
| Decano / Decane | 3.43 | 0.70 | 4.90 |
| Dimetilbutano / Dimethylbutane | 2.36 | 1.10 | 3.00 |
| Dimetilidrazina / N N-Dimethylhydrazine | 1.57 | 2.40 | 2.01 |
| Eptano / Heptane | 1.54 | 1.10 | 3.46 |
| Esano / Hexane | 1.43 | 1.00 | 2.97 |
| Etano / Ethane | 1.47 | 2.50 | 1.04 |
| Etanolo (Alcool etilico) / Ethanol (Ethyl alcohol) | 1.18 | 3.10 | 1.59 |
| Etere dietilico / Diethyl ether | 1.68 | 2.70 | 1.59 |
| Etilammina / Ethylamine | 1.59 | 2.68 | 1.50 |
| Etilbenzolo (Etilbenzene) / Ethylbenzene | 2.45 | 1.00 | 3.66 |
| Etilene / Ethylene | 1.00 | 2.30 | 0.97 |
| Etilmercaptano / Ethylmercaptan (Ethanethiol) | 1.54 | 2.80 | 2.11 |
| Etilmetiletere (Etere metietilico) / Ethyl methyl ether | 2.03 | 2.00 | 2.10 |
| Formiato di metile / Methyl formate | 1.63 | 5.00 | 2.07 |
| Idrazina / Hydrazine | 1.86 | 1.80 | 1.10 |
| Idrogeno / Hydrogen | 1.24 | 4.00 | 0.07 |
| Idrogeno solforato / Hydrogen sulphide | 2.20 | 4.00 | 1.19 |
| Iso-butano / iso-Butane | 2.23 | 1.30 | 2.00 |
| Iso-Butilene / iso-Butylene | 1.72 | 1.80 | 1.94 |
| Iso-Pentano / iso-Pentane | 2.18 | 1.40 | 2.50 |
| Metano / Natural gas | 1.00 | 4.40 | 0.55 |
| Metanolo (Alcool metilico) / Methanol (Methyl Alcohol) | 1.28 | 5.50 | 1.11 |
| Metilacetato (Acetato di metile) / Methyl acetate | 1.84 | 3.20 | 2.56 |
| Metilammina / Methylamine | 1.28 | 4.20 | 1.00 |
| Metilcicloesano / Methylcyclohexane | 2.25 | 1.15 | 3.38 |
| Metilesano / Methylhexane | 2.09 | 1.20 | 3.40 |
| Metiletilchetone (Butanone) / Butanone (MEK) | 2.00 | 1.80 | 2.48 |
| Metilidrazina / Methylhydrazine | 2.07 | 2.50 | 1.60 |
| Metilmercaptano / Methanethiol (Methyl mercaptan) | 1.41 | 3.90 | 1.66 |
| Metilpentano / Methylpentane | 2.38 | 1.10 | 3.00 |
| Metilpropilchetone / Methyl propyl ketone (Pentan-3one) | 2.22 | 1.50 | 3.00 |
| Nitrometano / Nitromethane | 1.84 | 7.30 | 2.10 |
| Nonano / Nonane | 1.84 | 0.70 | 4.43 |
| Ossido di carbonio / Carbon Monoxide | 1.26 | 10.90 | 0.97 |
| Ossido di etilene / Ethylene oxide | 2.05 | 0.09 | 1.52 |
| Ossido di propilene / Propylene oxide (1,2-propylene oxide) | 2.28 | 2.10 | 2.00 |
| Ottano-n / n-Octane | 3.14 | 0.80 | 3.93 |
| Pentano / n-Pentane | 1.94 | 1.40 | 2.48 |
| Pentene-1 / 1-Pentene | 2.07 | 1.40 | 2.40 |
| Propano / Propane | 1.95 | 1.70 | 1.56 |
| Propilamina-n / Propylamina | 1.82 | 2.00 | 2.04 |
| Propina / Propyne | 2.03 | 1.70 | 1.38 |
| Toluene (Toluolo) / Toluene | 2.37 | 1.10 | 3.20 |
| Trietilammina / Trethylamine | 2.22 | 1.20 | 3.50 |
| Trimetilammina / Trimethylamine | 1.71 | 2.00 | 2.04 |
| Xilolo (Xileni) / Xylenes | 2.37 | 1.00 | 3.66 |
Table 3
 Gas tossici e ossigeno – Sensori “E”
Toxic gases and oxygen - "E" sensors



                Toxic gases and oxygen - "E" sensors
| Gas di taratura / Calibration gas | Formula chimica / Chemical formula | Range di misura / Measuring range | TLV-TWA | Altezza installazione / Installation height |
|---|---|---|---|---|
| Acido cianidrico / Hydrogen cyanide | HCN | 10 ppm | 4.7 ppm | 1.6 m dal pavimento |
| Acido cloridrico / Hydrogen chloride | HCl | 10 ppm | 1 ppm | 30 cm dal pavimento |
| Ammoniaca / Ammonia | NH3 | 300 ppm | 25 ppm | 30 cm dal soffitto |
| Biossido di azoto / Nitrogen dioxyde | NO2 | 30 ppm | 3 ppm | 30 cm dal pavimento |
| Biossido di zolfo / Sulfur dioxide | SO2 | 20 ppm | 2 ppm | 30 cm dal pavimento |
| Cloro / Chlorine | Cl2 | 10 ppm | 0.5 ppm | 30 cm dal pavimento |
| Idrogeno solforato / Hydrogen sulphide | H2S | 100 ppm | 5 ppm | 30 cm dal pavimento |
| Monossido di carbonio / Carbon monoxide | CO | 300 ppm | 30 ppm | 1.6 m dal pavimento |
| Ossido di azoto / Nitric oxide | NO | 100 ppm | 25 ppm | 1.6 m dal pavimento |
| Ossigeno | O2 | 25% Vol. | - | 1.6 m dal pavimento |
