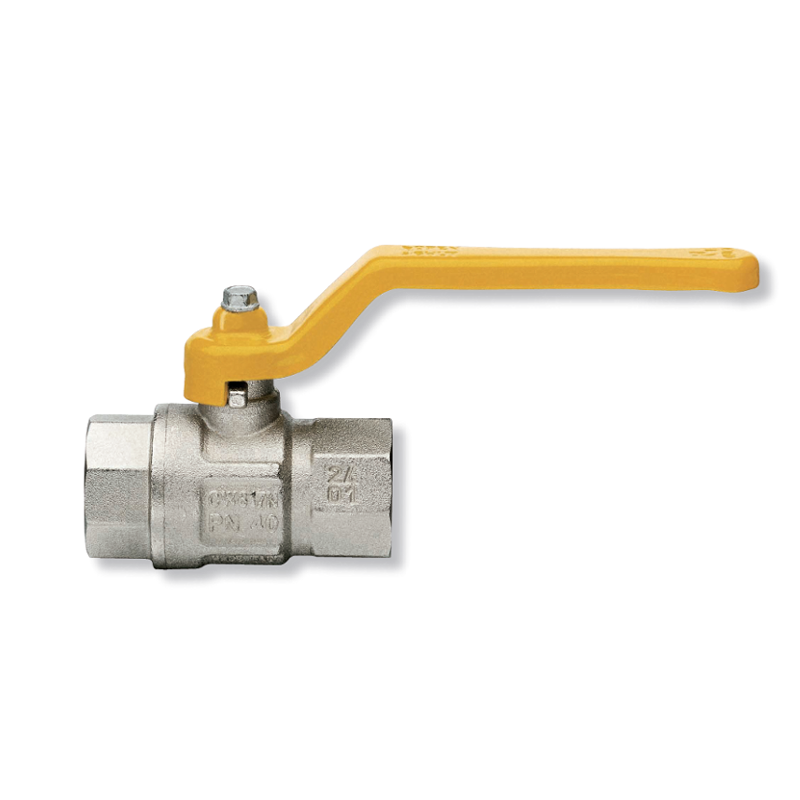

    Gas Ball Valves, Full Flow - FF

    Designed to ensure maximum safety and uninterrupted flow, BVxxx-FF ball valves are suitable for civil and industrial gas supply systems. Made of high-quality brass and compliant with industry standards. See more...
    Request informations
    Standard Specifications
    Model Female threads. Lever handle in steel.
    Inlet - Outlet Female thread ISO 7/1 Rp parallel
    Connection (equivalent to DIN EN 10226-1 and BS EN 10226-1)
    NPT threads on request
    Working Temperature - 20° C, + 60° C.
    Approval EN 331
    P.Max : 5Bar
    Complete Body Body in nickel-plated brass
    Downloads
    To view the video, you need to accept our Cookie Policy. If the player doesn't appear, click the link below.

    Gas Ball Valves Pressure Drop table
