CE700 Control unit up to 200 sensors

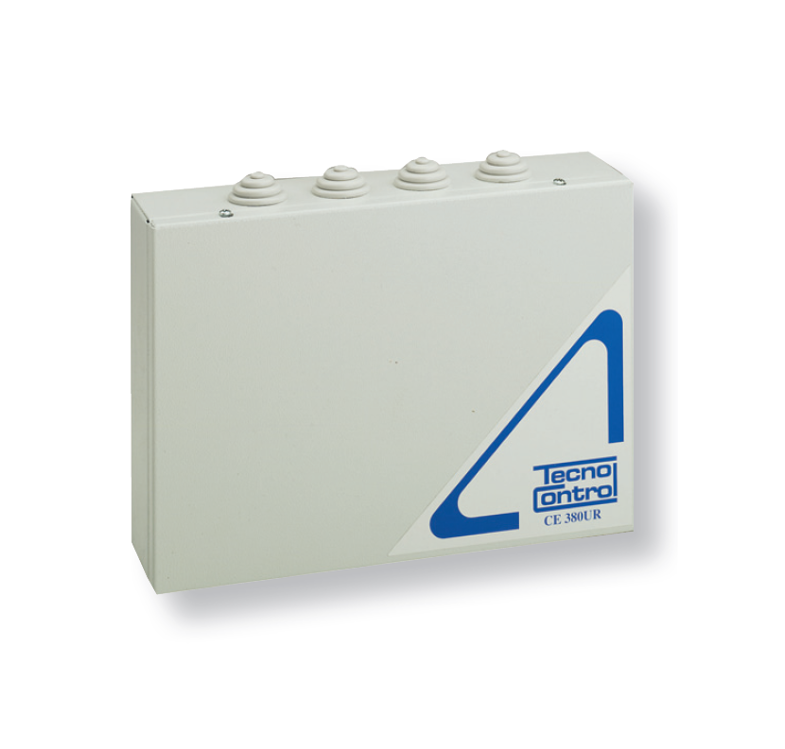

The microprocessor central unit is usable for big industrial applications and it is arranged to operate matched with remote units type CE380UR which manage 8 sensors each. On the CE700 it is possible to connect max 23 r… See more...
The microprocessor central unit is usable for big industrial applications and it is arranged to operate matched with remote units type CE380UR which manage 8 sensors each. On the CE700 it is possible to connect max 23 remote units for a total of 184 detectors and relays (with ES480UR boards).Considering 16 inputs and 16 relays available directly in central through specific expansion boards, the total is of 200 detectors and 200 relays available.
            Standard Specifications
































































































































































































































































































            Power supply: 230Vac 50-60Hz





                        Measuring range: Programmabile





                        Alarm intervention: 3 programmabiles





                        Inputs: N° 200 max





                        Output: N° 200 relè max





                        Capacity: 3A (1A) SPDT 230Vac





                        IP40





                        Compatible to sensors Series SE and TS for toxic, inflammable gases and oxygen, also simultaneously





                        Serial door with MODBUS RTU protocol, with bidirectional communication for overvision





                        Backlit display 2 rows x 40 characters





                        999-event memory






            Options










































































    Available in wall or in rack versions





                        Available connection of a backup battery
